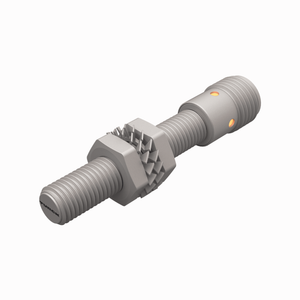

Turck Bi2U-Egt08-Ap6X-V1131/S1589 Inductive 46020701
Turck
$183.10
Manufacturer's Part Number: 46020701
Inductive Sensor. With WeldGuard coating. Ident. no.: 46020701. Threaded barrel, M8 x 1. Stainless steel, PTFE-coated. Front cap with special coating, very resistant to thermal and mechanical load. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. M8 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 2 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Connector, M8 ?ù 1
- Housing material:
- Stainless steel, 1.4427 SO, PTFE-coated
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields, weldguard?«, PTFE-coated
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
