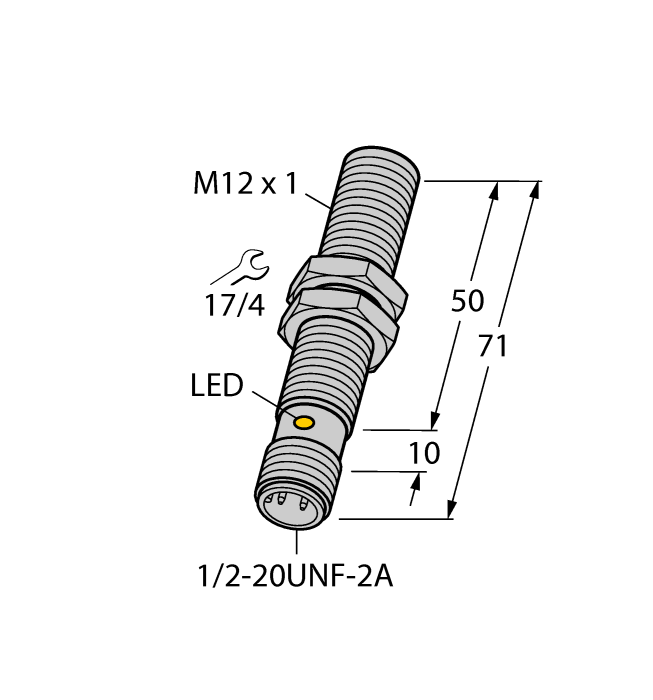

Turck Bi2U-G12-Adz32X-B3131 Inductive 4281005
Turck
$255.90
Manufacturer's Part Number: 4281005
Inductive Sensor. Ident. no.: 4281005. Threaded barrel, M12 x 1. Chrome-plated brass. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. 1/2" male connector
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Rated switching distance:
- 2 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.010 kHz
- Electrical connection:
- Connector, 1/2
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
