Turck Bi30U-Cp40-Ap6X2-H1141 Inductive 1625839

(No reviews yet) Write a Review
SKU:
BI30U-CP40-AP6X2-H1141
Condition:
New
EAN:
4047101080148
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365019900
Country of origin:
DE
Weight:
228 g
Design:
Rectangular

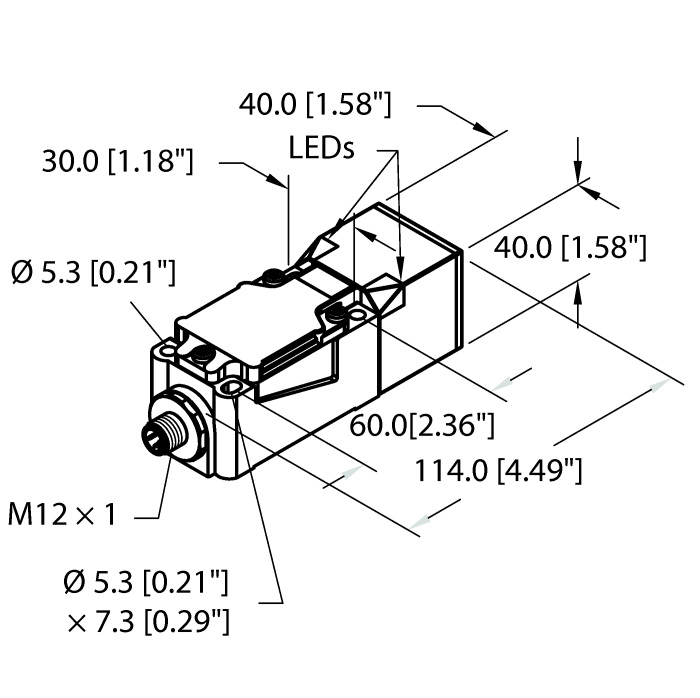

Construction size:
114 x 40 x 40 mm, CP40
Rated switching distance:
30 mm
Mounting:
Flush
Operating voltage:
10…30 VDC
Output function:
NO contact, PNP
Switching frequency:
0.250 kHz
Electrical connection:
Connector, M12 × 1
Housing material:
Plastic, PBT-GF30-V0, Black
Ambient temperature:
-10…+60 °C
Protection class:
IP68
Special features:
uprox+, Factor 1, Resistant to magnetic fields
$188.00

Description

Inductive Sensor, With Extended Switching Distance, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBTGF30V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, DC 3-wire, 1030 VDC, NO contact, PNP output, M12 x 1 male connector, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large coverage, High switching frequency, Rated switching distance: 30 mm, Flush
