TURCK Bi30U-Cp40-Ap6X2/S10 Inductive 1625825
Turck
$193.60
Manufacturer's Part Number: 1625825
Inductive Sensor. With Extended Switching Distance. Ident. no.: 1625825. Rectangular, height 40 mm. Variable orientation of active face in 9 directions . Plastic, PBT GF30 V0. High luminance corner LEDs . Optimum visibility of operating-voltage display and switching state in any installation position . Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Large coverage. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. Terminal chamber
- Design:
- Rectangular

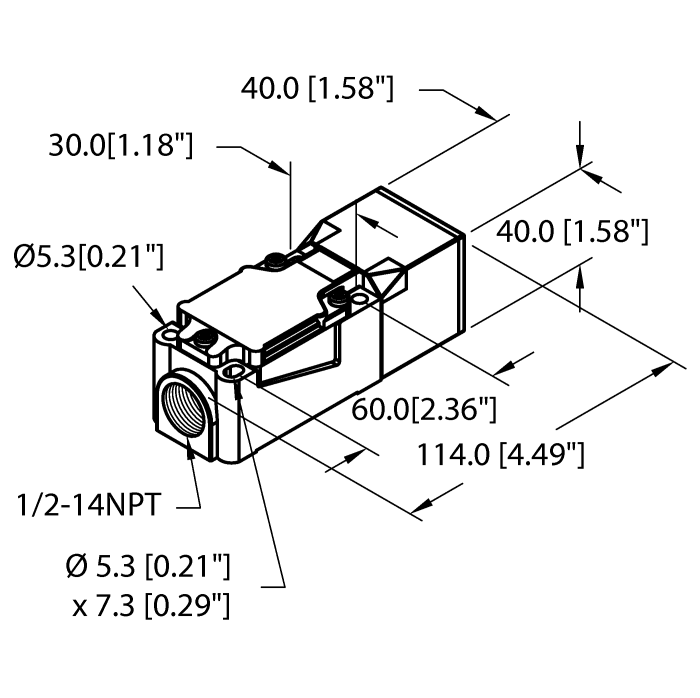

- Construction size:
- 114 x 40 x 40 mm, CP40
- Rated switching distance:
- 30 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, PBT-GF30-V0, Black
- Ambient temperature:
- -10?à+60 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
