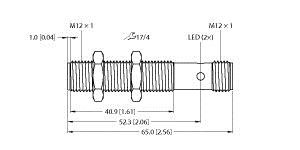

Turck Bi4-M12-2Aps8X2-H1141 Inductive 100016606
Turck
$295.60
Manufacturer's Part Number: 100016606
Inductive Safety Sensor. Ident. no.: 100016606. M12 × 1 threaded barrel. Nickel-plated brass. SIL 2 (IEC 61508). PL d (ISO 13849-1). 2 x OSSD output, NO contact, PNP. DC 4-wire, 24 VDC
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Rated switching distance:
- 4 mm
- Mounting:
- Flush
- Operating voltage:
- 19.2 28.8 VDC
- Output function:
- 2 x OSSD, NO contact, PNP
- Switching frequency:
- 0.10 kHz
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Metal, CuZn
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
