Turck Bi5-Em18-Ap6X-H1141 Inductive 4614501
Turck
$151.00
Manufacturer's Part Number: 4614501

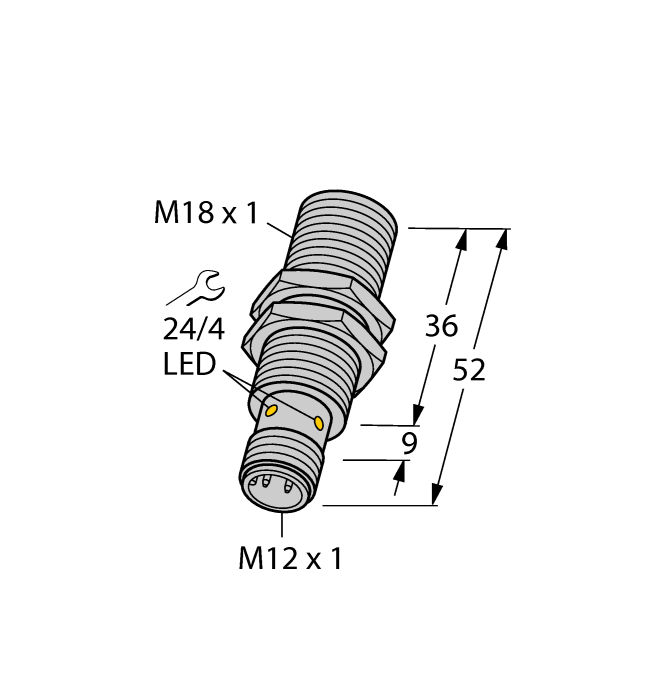

Inductive Sensor. Ident. no.: 4614501. Threaded barrel, M18 x 1. Stainless steel, 1.4301. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless steel, 1.4301 (AISI 304)
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
