Turck Bi5-P18-Az3/S139-S1261 7M Inductive 1384304
Turck
$375.30
Manufacturer's Part Number: 1384304

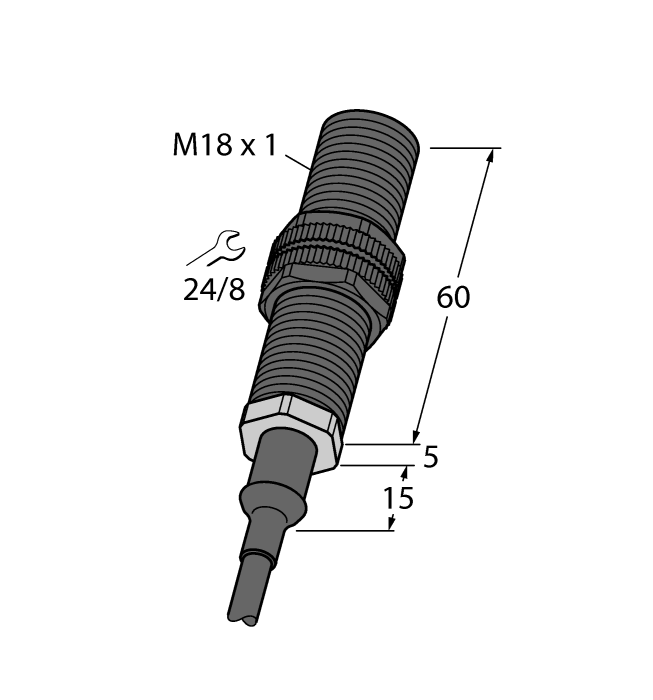

Inductive Sensor. For Underwater Applications. Ident. no.: 1384304. Threaded barrel, M18 x 1. Plastic, POM. For underwater and off-shore applications. Oil and seawater resistant. Protection class IP68, 500 m water column. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 7.0 m
- Housing material:
- Plastic, POM, Black
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP68
- Special features:
- Underwater
