Turck Bi5-P18Sk-Rz3X2 55Mm Inductive 4351290
Turck
$223.80
Manufacturer's Part Number: 4351290

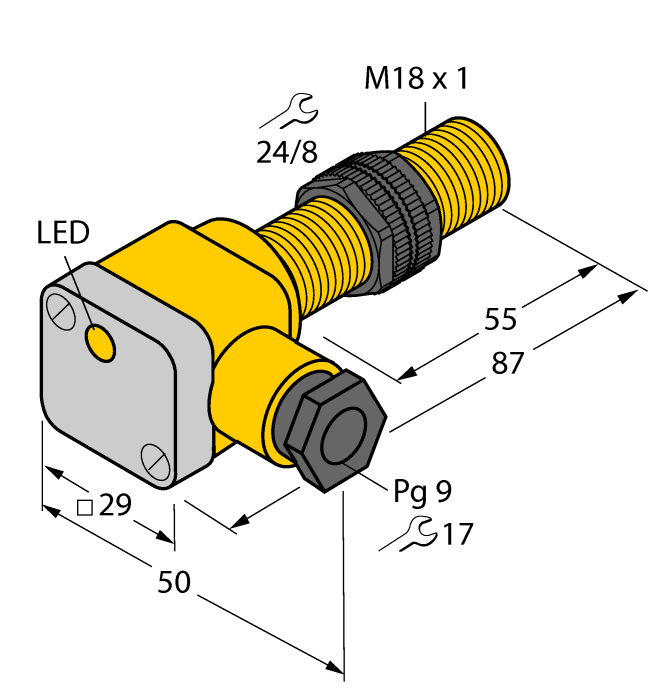

Inductive Sensor. Ident. no.: 4351290. Threaded barrel, M18 x 1. Plastic, PA12 GF30-V0. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NC contact. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NC contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
