Turck Bi5-S18-An6X Inductive 46561
Turck
$137.30
Manufacturer's Part Number: 46561

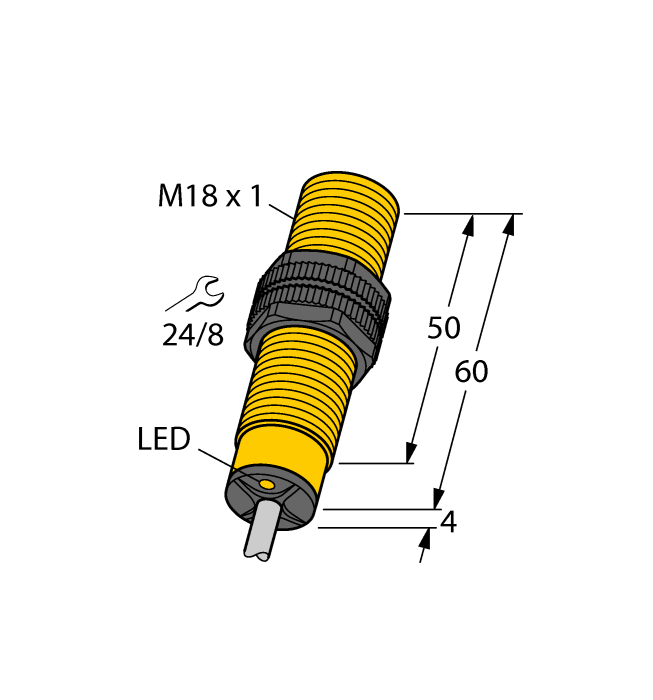

Inductive Sensor. Ident. no.: 46561. Threaded barrel, M18 x 1. Plastic, PA12 GF30. DC 3-wire, 10
30 VDC. NO contact, NPN output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
