Manufacturer's Part Number: 4036095

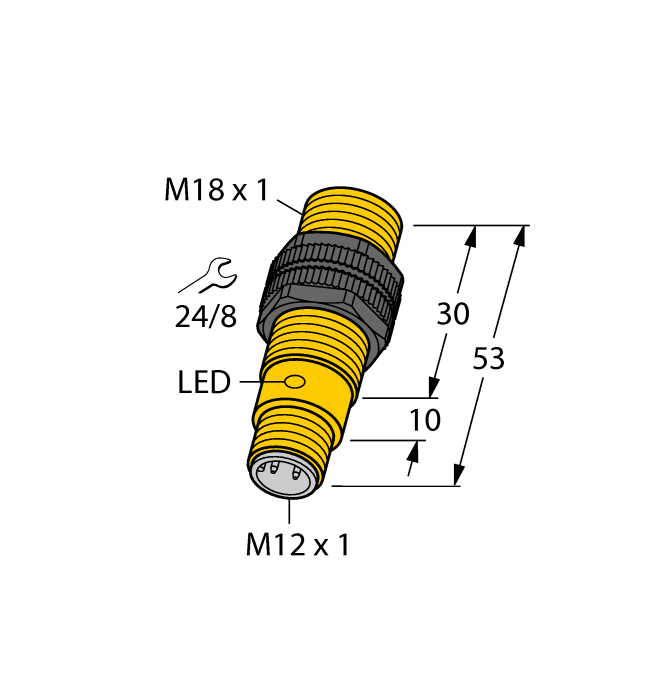

Inductive Sensor. Ident. no.: 4036095. Threaded barrel, M18 x 1. Plastic, PA12 GF30. DC 2-wire, nom. 8.2 VDC. Output acc. to EN 60947-5-6 (NAMUR). M12 × 1 connector
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
