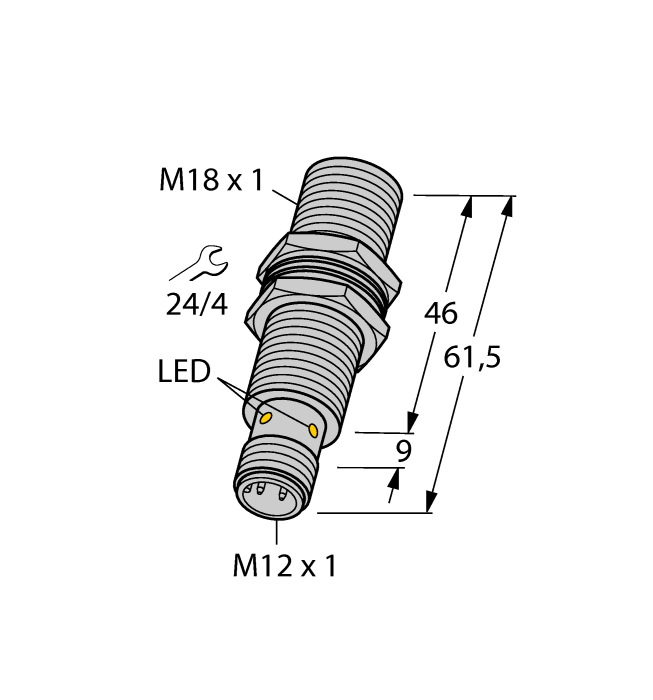

Turck Bi5U-Em18H-Ap6X2-H1141/S395 Inductive 1635158

(No reviews yet) Write a Review
SKU:
BI5U-EM18H-AP6X2-H1141/S395
MPN:
1635158
Condition:
New
Availability:
Factory Stock: 20
Design:
Threaded barrel
Construction size:
M18 x 1
Rated switching distance:
5 mm
Mounting:
Flush
Operating voltage:
10?à30 VDC
Output function:
NO contact, PNP
Switching frequency:
2.50 kHz
Electrical connection:
Connector, M12 ?ù 1
Housing material:
Stainless steel, 1.4301 (AISI 304)
Ambient temperature:
-30?à+85 ??C
Protection class:
IP68
Special features:
uprox+, Factor 1, Resistant to magnetic fields
Flyer:
View
Catalog:
View
Datasheet:
View
  • Turck Bi5U-Em18H-Ap6X2-H1141/S395 Inductive 1635158
  • Turck Bi5U-Em18H-Ap6X2-H1141/S395 Inductive Sensor, uprox
$180.00

Description

Inductive Sensor. Ident. no.: 1635158. Threaded barrel, M18 x 1. Stainless steel, 1.4301. Duroplast front cap, very resistant to thermal and mechanical load. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10…30 VDC. NO contact, PNP output. M12 x 1 male connector
