Turck

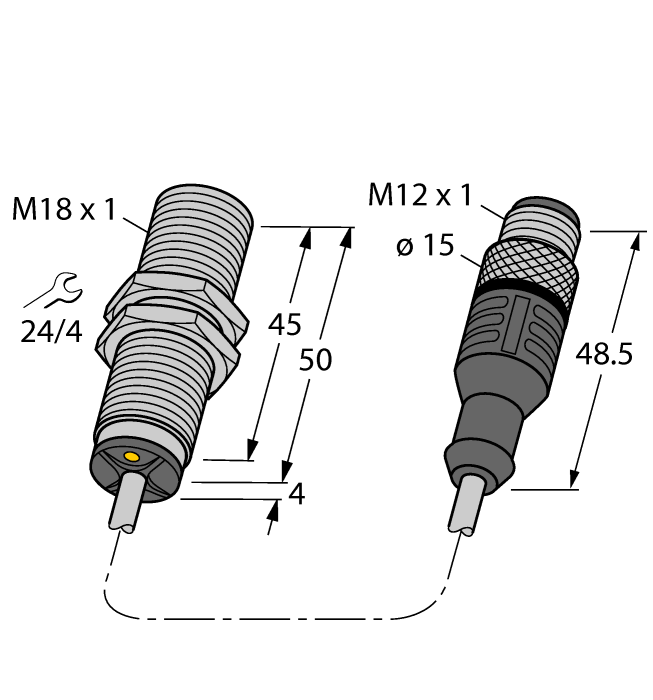

Turck Bi5U-M18-An6X-0.3-Rs4T Inductive 1635190

(No reviews yet) Write a Review
SKU:
BI5U-M18-AN6X-0.3-RS4T
MPN:
1635190
Condition:
New
Design:
Threaded barrel
Construction size:
M18 x 1
Rated switching distance:
5 mm
Mounting:
Flush
Operating voltage:
10…30 VDC
Output function:
NO contact, NPN
Switching frequency:
1.50 kHz
Electrical connection:
Cable with connector, M12 × 1
Cable length (L):
0.30 m
Housing material:
Metal, CuZn, Chrome-plated
Ambient temperature:
-30…+85 °C
Protection class:
IP68
Special features:
uprox+, Factor 1, Resistant to magnetic fields
Flyer:
View
Catalog:
View
Datasheet:
View
  • Turck Bi5U-M18-An6X-0.3-Rs4T Inductive 1635190
  • Turck Bi5U-M18-An6X-0.3-Rs4T Inductive sensor
$161.30

Description

Inductive Sensor. Ident. no.: 1635190. Threaded barrel, M18 x 1. Chrome-plated brass. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10…30 VDC. NO contact, NPN output. Pigtail with M12 × 1 connector
