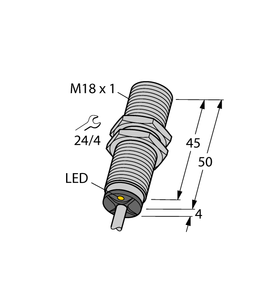

Turck Bi5U-P18Sk-Ap6X Inductive 1635700
Turck
$194.10
Manufacturer's Part Number: 1635700
Inductive Sensor. Ident. no.: 1635700. Threaded barrel, M18 x 1. Plastic, PA12-GF30. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 3.0 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Quick Start Guide:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
