Turck Bi7.5U-Q14-Rp6X2-V1131 Inductive 1601700
Turck
$112.10
Manufacturer's Part Number: 1601700
Inductive Sensor. Ident. no.: 1601700. Rectangular, height 14 mm. Active face on top. Plastic, PBT GF30 V0. Factor 1 for all metals. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NC contact, PNP output. M8 x 1 male connector
- Design:
- Rectangular

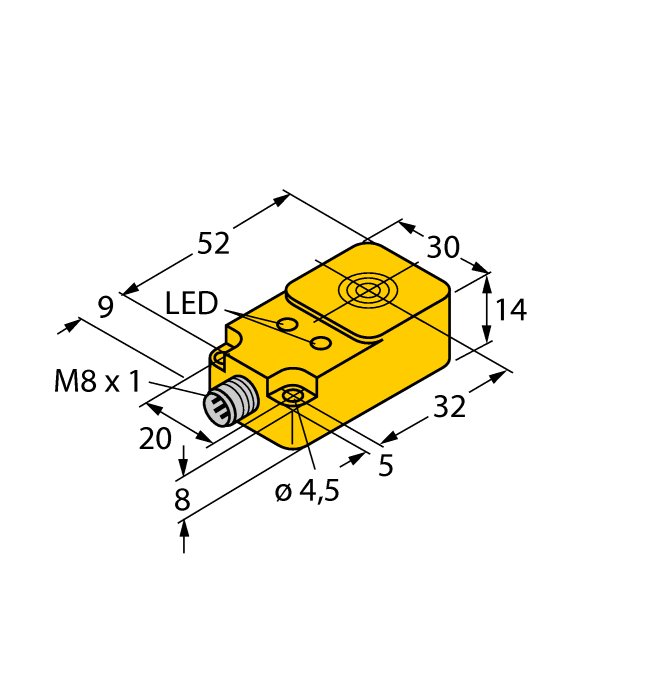

- Construction size:
- 52 x 30 x 14 mm, Q14
- Rated switching distance:
- 7.5 mm
- Mounting:
- Flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NC contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, M8 × 1
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP67
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
