Manufacturer's Part Number: 4590704

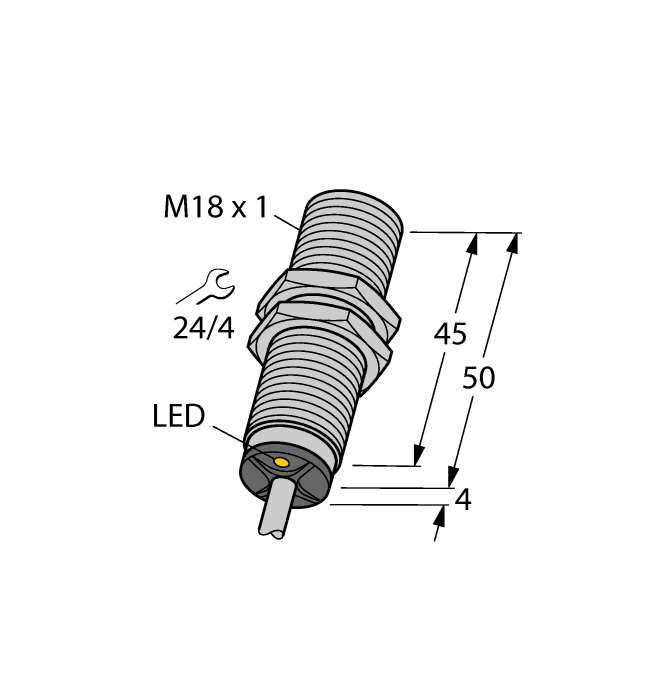

Inductive Sensor. With Increased Switching Distance. Ident. no.: 4590704. Threaded barrel, M18 x 1. Chrome-plated brass. Large sensing range. DC 4-wire, 10
65 VDC. Changeover contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 8 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à65 VDC
- Output function:
- Complementary contact, PNP
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Special features:
- Sn +
