Turck Bi8-M18E-Liu-H1141 Inductive 1535561
Turck
$442.50
Manufacturer's Part Number: 1535561

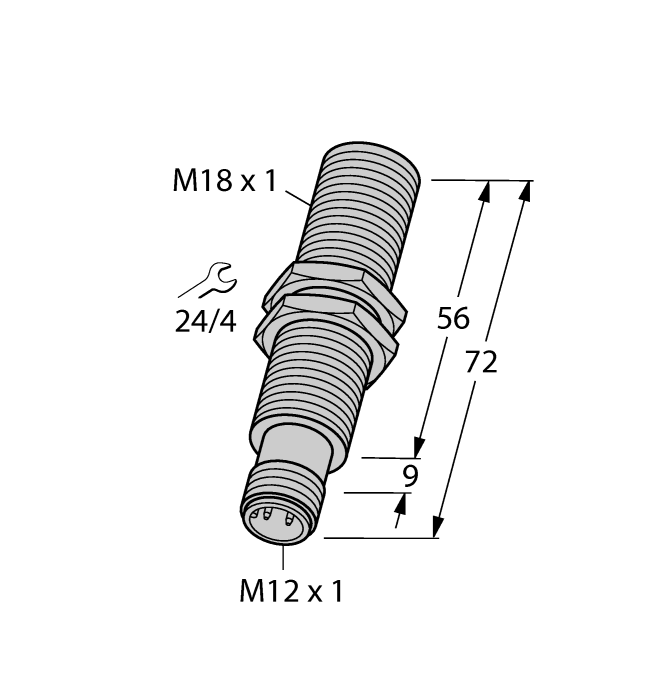

Inductive Sensor. With Analog Output. Ident. no.: 1535561. Threaded barrel, M18 x 1. Chrome-plated brass. 4 wire, 15
30 VDC. Analog output. 0
10 V and 0
20 mA. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Measuring range:
- 1?à5 mm
- Mounting:
- Flush
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 0?à20 mA
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
