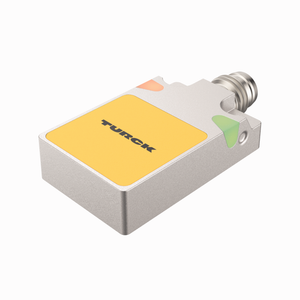

Turck Bi8U-Q08-An6X2-V1131 Inductive 1662008
Turck
$139.30
Manufacturer's Part Number: 1662008
Inductive Sensor. With Extended Switching Distance. Ident. no.: 1662008. Rectangular, height 8 mm. Active face on top. Metal, Zamak, nickel-plated. Factor 1 for all metals. Increased switching distance. Protection class IP68. Resistant to magnetic fields. Mountable on metal. DC 3-wire, 10
30 VDC. NO contact, NPN output. Male connector M8 Ã 1/Ã 8 mm
- Design:
- Rectangular
- Construction size:
- 32 x 20 x 8 mm, Q08
- Rated switching distance:
- 8 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, M8 ?ù 1/?ÿ 8 mm
- Housing material:
- Metal, Zamak, Nickel Plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Catalog:
- View
- Datasheet:
- View
