Turck Bi8U-Q10-An6X2-V1131 Inductive 1662004
Turck
$102.60
Manufacturer's Part Number: 1662004
Inductive Sensor. Ident. no.: 1662004. Rectangular, height 10.8 mm. Active face on top. Plastic, PBT-GF30-V0. Factor 1 for all metals. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, NPN output. M8 x 1 male connector
- Design:
- Rectangular
- Construction size:

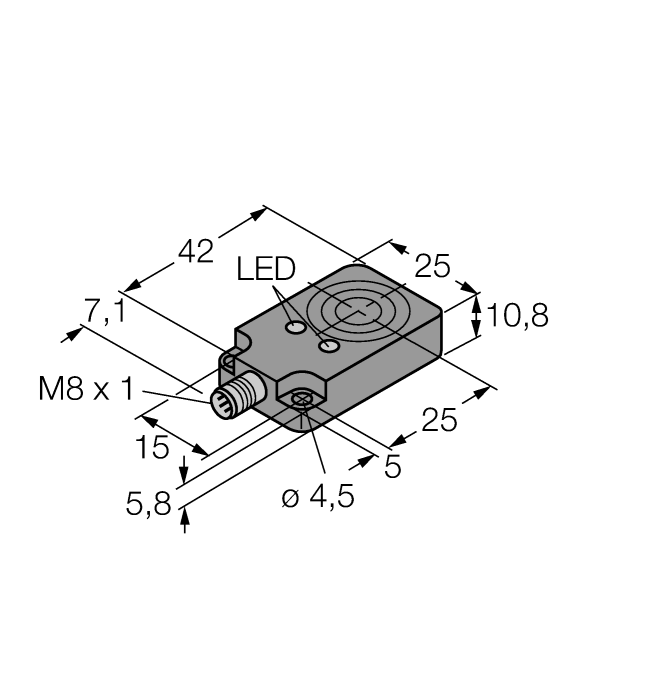

- 42 x 25 x 10.8 mm, Q10
- Rated switching distance:
- 8 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, M8 ?ù 1
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP67
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
