Turck Bid2-G180-Ap6/S212 Inductive 1688003
Turck
$497.30
Manufacturer's Part Number: 1688003

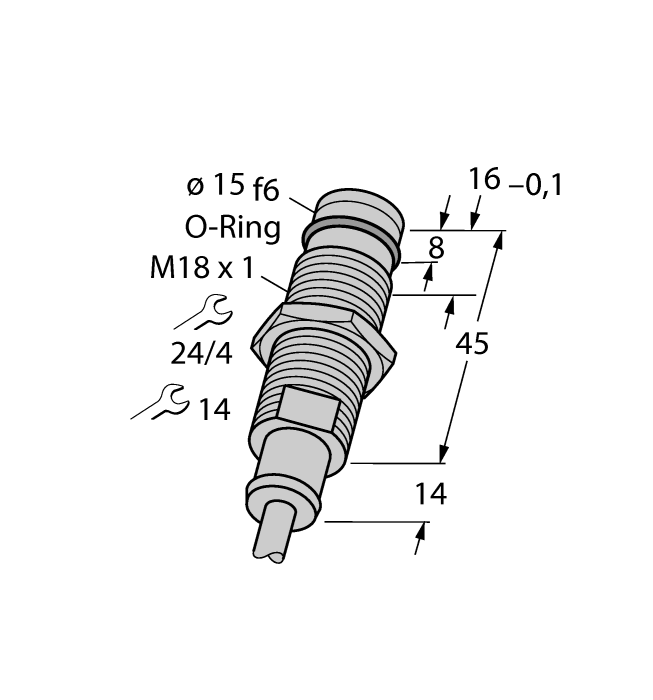

Inductive Sensor. For High Pressures. Ident. no.: 1688003. Threaded barrel, M18 x 1. Stainless steel, 1.4305. Admissible pressure static/dynamic 500/350 bar. DC 3-wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 2 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, 1.4305 (AISI 303)
- Ambient temperature:
- -25?à+85 ??C
- Protection class:
- IP67
- Special features:
- Pressure resistant
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
