Turck Bim-Akt-Y1X-H1141 W/Kla1 Magnetic 1055290
Turck
$136.10
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Bim-Akt-Y1X-H1141 W/Kla1 Magnetic 1055290
Manufacturer's Part Number: 1055290
Magnetic Field Sensor. For Pneumatic Cylinders. Ident. no.: 1055290. Rectangular, height 24 mm. Concentric active face. Plastic, PA12 GF30. Magnetic-inductive sensor. DC 2-wire, nom. 8.2 VDC. Output acc. to EN 60947-5-6 (NAMUR). M12 × 1 connector. ATEX category II 2 G, Ex Zone 1. ATEX category II 1 D, Ex Zone 20. SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0. SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Rectangular

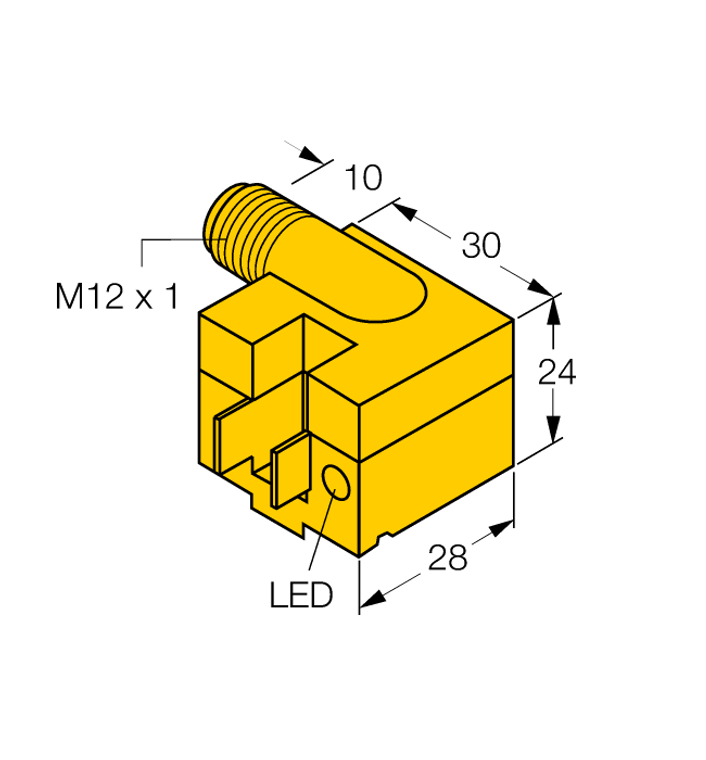

- Construction size:
- 28 x 30 x 24 mm, AKT
- Cylindrical design:
- Profile cylinder
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
