Turck Bim-Eg08-Ap6X-H1341 Magnetic 4621311
Turck
$219.00
Manufacturer's Part Number: 4621311

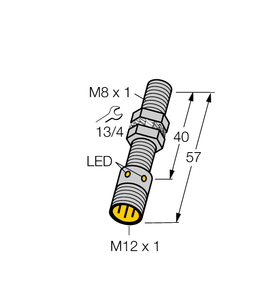

Magnetic Field Sensor. Magnetic-inductive Proximity Sensor. Ident. no.: 4621311. M8 1 threaded barrel. Stainless steel, 1.4427 SO. Rated operating distance 78 mm with DMR31-15-5 magnet. DC 3-wire, 1030 VDC. NO contact, PNP output. Male connector, M12 x 1
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 78 mm
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless steel, 1.4427 SO
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Special features:
- Magnetic-inductive
- Catalog:
- View
- Datasheet:
- View
