Turck Bim-Eg08-Y1X Magnetic 1074000
Turck
$114.00
Manufacturer's Part Number: 1074000

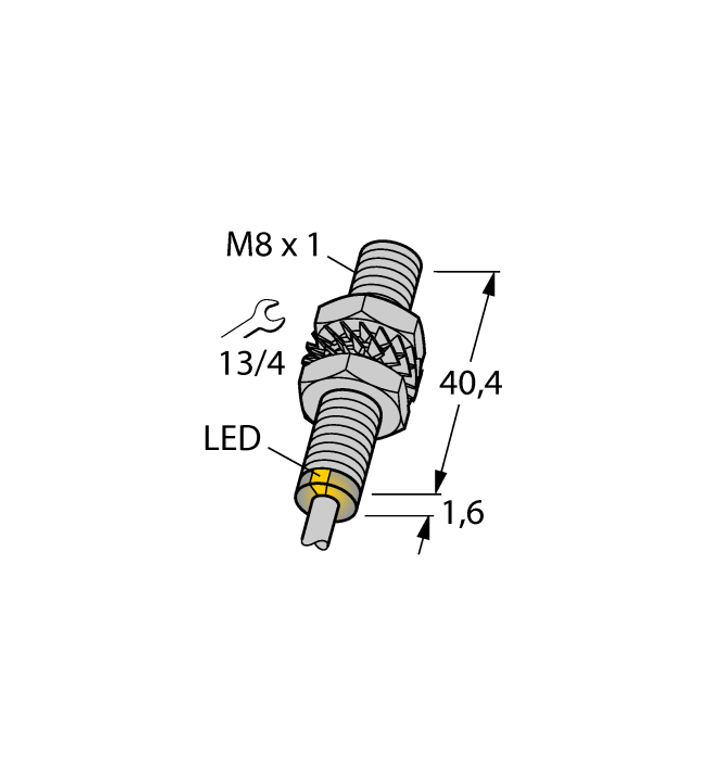

Magnetic Field Sensor. Magnetic-inductive Proximity Sensor. Ident. no.: 1074000. M8 × 1 threaded barrel. Stainless steel, 1.4427 SO. Rated operating distance 78 mm with DMR31-15-5 magnet. DC 2-wire, nom. 8.2 VDC. Output acc. to EN 60947-5-6 (NAMUR). Cable connection. ATEX category II 1 G, Ex zone 0. ATEX category II 1 D, Ex zone 20. SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0. SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 78 mm
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Stainless steel, 1.4427 SO
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Approvals:
- ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
- Special features:
- Magnetic-inductive
