Turck Bim-Ike-Y1X-H1141 W/Kli3 Magnetic 1056690
Manufacturer's Part Number: 1056690
Magnetic Field Sensor. For Pneumatic Cylinders. Ident. no.: 1056690. Rectangular, height 28 mm. Metal, GD-Zn. Magnetic-inductive sensor. DC 2-wire, nom. 8.2 VDC. Output acc. to EN 60947-5-6 (NAMUR). M12 × 1 connector. ATEX category II 2 G, Ex Zone 1. ATEX category II 1 D, Ex Zone 20. SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0. SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Rectangular
- Construction size:

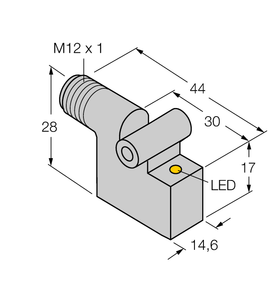

- 30 x 14.6 x 28 mm, IKE
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, GD-Zn
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
