Turck Bim-Kst-An6X Magnetic 46741
Turck
$169.90
Manufacturer's Part Number: 46741
Magnetic Field Sensor. For Pneumatic Cylinders. Ident. no.: 46741. Rectangular, height 17 mm. Front active face. Metal/plastic, GD-Zn/Al/PA12-GF30. Magnetic-inductive sensor. DC 3 wire, 10
30 VDC. NO contact, NPN output. Cable connection
- Design:
- Rectangular
- Construction size:

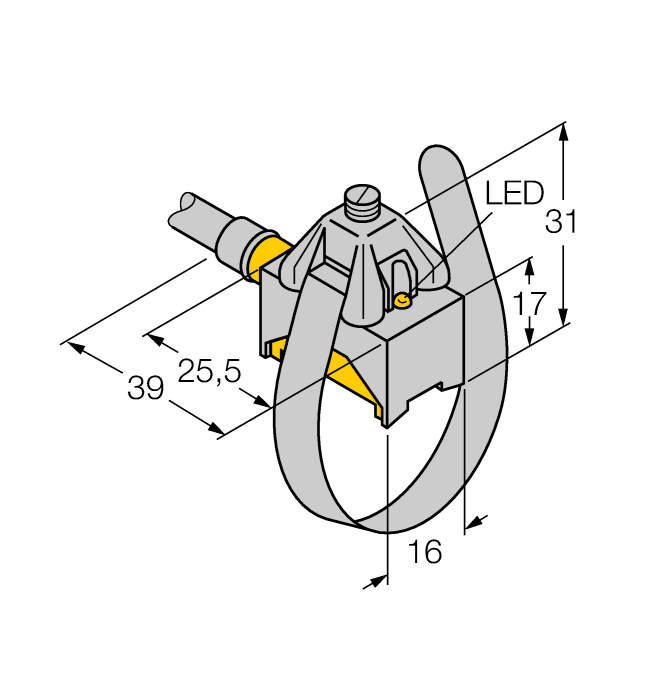

- 37 x 16 x 17 mm, KST
- Cylindrical design:
- Round cylinder
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, NPN
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal/plastic, GD-ZN/Al/PA12-GF30
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
