Manufacturer's Part Number: 46740

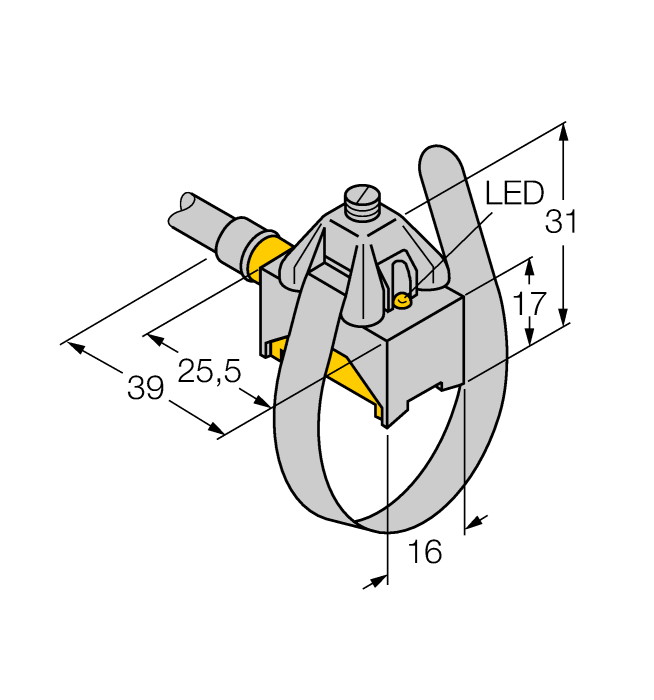

Magnetic Field Sensor. For Pneumatic Cylinders. Ident. no.: 46740. Rectangular, height 17 mm. Front active face. Metal/plastic, GD-Zn/Al/PA12-GF30. Magnetic-inductive sensor. DC 3 wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Rectangular
- Construction size:
- 37 x 16 x 17 mm, KST
- Cylindrical design:
- Round cylinder
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal/plastic, GD-ZN/Al/PA12-GF30
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
