Description

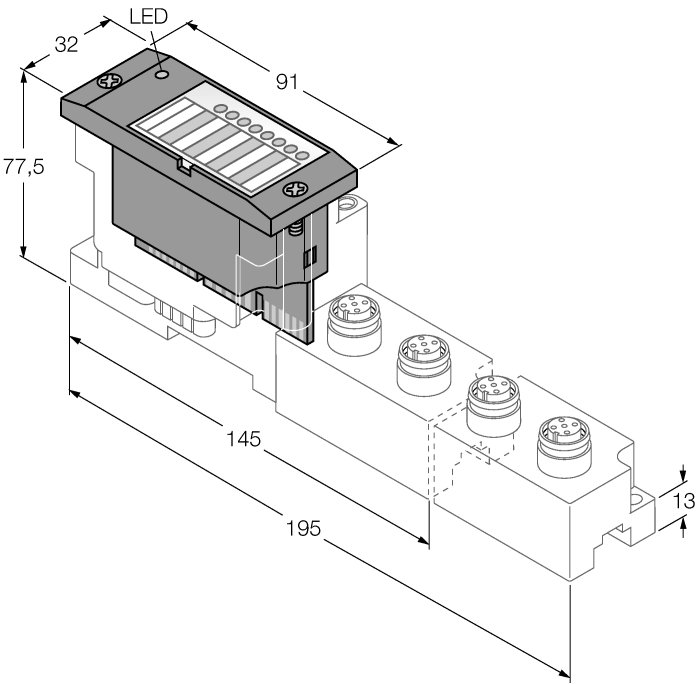

BL67 electronic module, 16 Digital Outputs, PNP, 0.1 A, , Independent of the type of fieldbus and connection technology used, Protection class IP67, 16 digital outputs, 24 VDC, 0.1A nominal current, Imax = 180 mA per channel with 50% simultaneity of the 16 channels, PNP, Channel diagnostics, LEDs indicate status and diagnostic, Electronics galvanically separated from the field level via optocouplers
