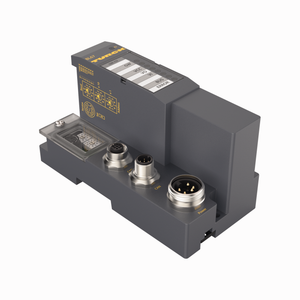

Turck BL67-GW-EC-20 Gateway: Advanced EtherCAT Interface for BL67 I/O Systems with IP67 Protection and LED Indicators
Turck
$557.00
Manufacturer's Part Number: 100042217
The Turck BL67-GW-EC-20 is a robust gateway designed for the BL67 I/O system, providing seamless integration with EtherCAT networks. It features three decimal rotary coding switches for easy configuration and is built to withstand harsh environments with its IP67 protection class. The device includes LEDs to indicate supply voltage, group, and bus errors, ensuring efficient monitoring and troubleshooting. Serving as a crucial link between the BL67 system and EtherCAT, it supports data transfer rates of 10/100 Mbps and features Auto MDIX for simplified network setup. Connectivity is facilitated through two 4-pin D-coded M12 female connectors for fieldbus connection and a 5-pin 7/8? male connector for power supply, ensuring reliable and secure connections.
Product Features
3 decimal rotary coding switches, Protection class IP67, LEDs for display of supply voltage, group and bus errors, Gateway between the BL67 system and EtherCAT, 10/100 Mbps, Auto MDIX, Two 4-pin D-coded M12 female connectors for fieldbus connection (from VN 03-00), One 5-pin 7/8? male connector for power supply
Product Features
3 decimal rotary coding switches, Protection class IP67, LEDs for display of supply voltage, group and bus errors, Gateway between the BL67 system and EtherCAT, 10/100 Mbps, Auto MDIX, Two 4-pin D-coded M12 female connectors for fieldbus connection (from VN 03-00), One 5-pin 7/8? male connector for power supply
