Turck Blcen-16M8Lt-8Xsg-P-8Xsg-P Block-Io 6811459
Turck
$1,098.70
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Blcen-16M8Lt-8Xsg-P-8Xsg-P Block-Io 6811459
Manufacturer's Part Number: 6811459

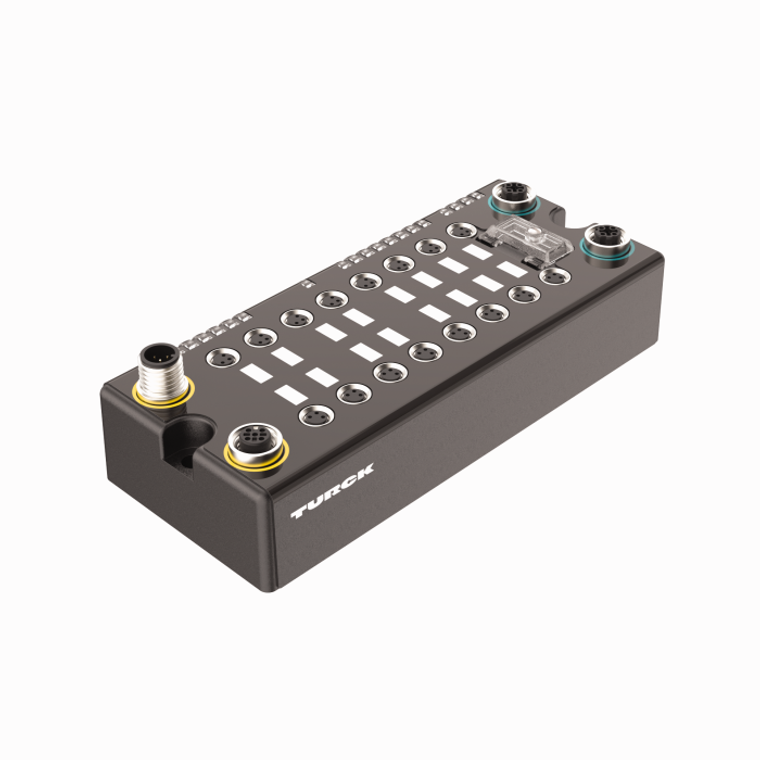

BL compact multiprotocol fieldbus station for Industrial Ethernet. 16 Configurable Digital PNP Channels. Ident. no.: 6811459. On-machine Compact fieldbus I/O block. EtherNet/IP, Modbus® TCP, or PROFINET slave. Integrated Ethernet Switch. 10 Mbps / 100 Mbps supported. Two 4-pole M12, D-coded, connectors for fieldbus connection. 2 rotary switches for node address. IP67. M8 I/O connectors. LEDs indicating status and diagnostics. Electronics galvanically separated from the field level via optocouplers. 16 Configurable digital PNP channels, 24 VDC. Max. 0.5A per channel. Selection of filtering times (Input delay). Invertible inputs
- Fieldbus Protocol:
- Modbus TCP, EtherNet/IP, PROFINET
- Signal type:
- Digital output, Digital input/output, Digital input
- Connection technology signal:
- M8
- Device type:
- I/O Module, Compact station, Field Logic Controller (ARGEE)
- Fieldbus transmission rate:
- 10/100 Mbps
- Fieldbus connection technology:
- 2 2
- Ambient temperature:
- -40?à+70 ??C
- Protection class:
- IP67
- Manual:
- View
- Flyer:
- View
- Datasheet:
- View
