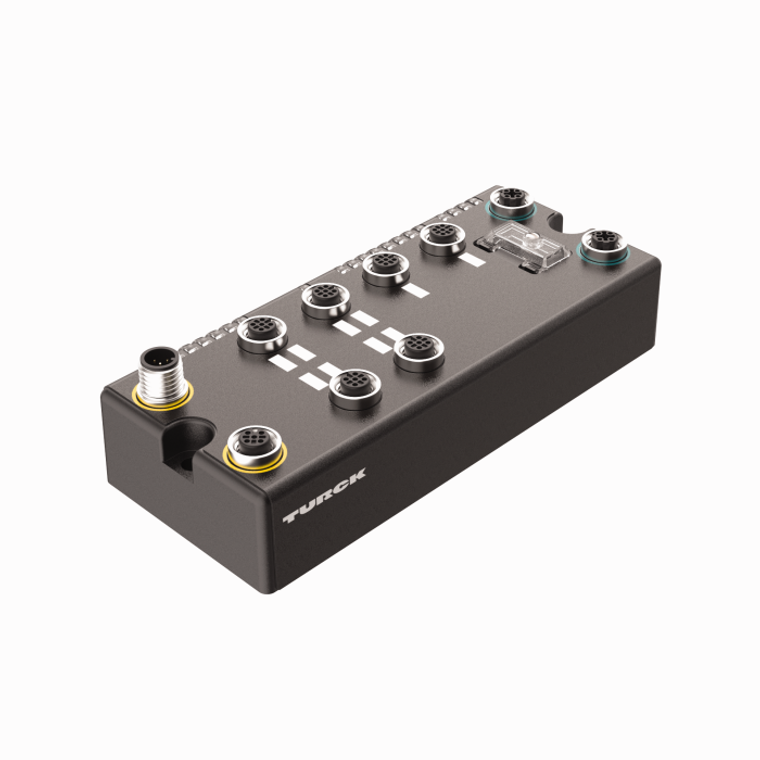

Turck Blcen-6M12Lt-2Ai-Pt-8Xsg-P Block-Io 6811515
Turck
$973.30
Manufacturer's Part Number: 6811515
BL compact multiprotocol fieldbus station for Industrial Ethernet. 2 Analog Inputs for Pt and Ni Sensors and 8 Configurable Digital PNP Channels. Ident. no.: 6811515. On-machine Compact fieldbus I/O block. EtherNet/IP, Modbus® TCP, or PROFINET slave. Integrated Ethernet Switch. 10 Mbps / 100 Mbps supported. Two 4-pole M12, D-coded, connectors for fieldbus connection. 2 rotary switches for node address. IP67, IP69K. M12 I/O connectors. LEDs indicating status and diagnostics. Electronics galvanically separated from the field level via optocouplers. 8 Configurable digital PNP channels, 24 VDC. Max. 0.5A per channel. Selection of filtering times (Input delay). Invertible inputs. 2 analog inputs for RTDs. Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, 0
100 , 0
200 , 0
400 , or 0
1000 (selectable per channel)
- Fieldbus Protocol:
- Modbus TCP, EtherNet/IP, PROFINET
- Signal type:
- Analog input, Temperature, Digital input/output
- Connection technology signal:
- M12
- Device type:
- I/O Module, Compact station, Field Logic Controller (ARGEE)
- Fieldbus transmission rate:
- 10/100 Mbps
- Fieldbus connection technology:
- 2 2
- Ambient temperature:
- -40?à+70 ??C
- Protection class:
- IP67/IP69K
- Manual:
- View
- Datasheet:
- View
