Manufacturer's Part Number: 1582233

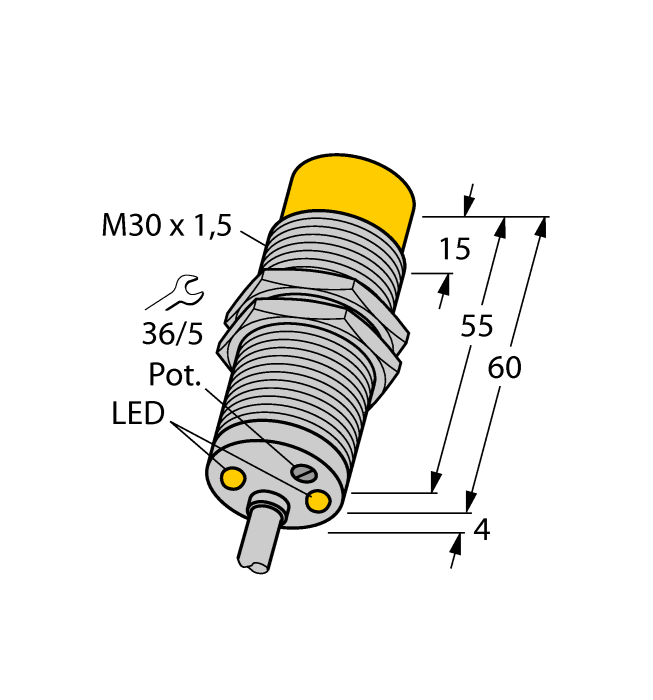

Inductive Sensor. Rotation speed monitor. Ident. no.: 1582233. M30 1.5 threaded tube. Chrome-plated brass. Large monitoring range of 3 to 3000 1/min. Adjusted via potentiometer. Fixed start-up time delay 5 s. Resistant to magnetic fields. DC 3-wire, 1065 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 20 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à65 VDC
- Output function:
- NO contact, PNP
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP67
- Special features:
- Rotation speed monitoring
