Turck Dni30U-K40Sr-Ap4X2 Inductive 1500202
Turck
$406.20
Manufacturer's Part Number: 1500202

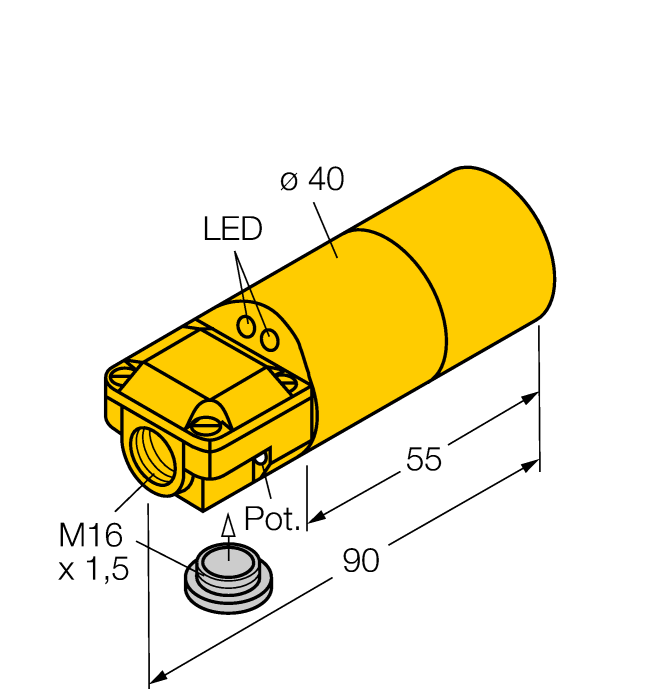

Inductive Sensor. Rotation speed monitor. Ident. no.: 1500202. 2 cable entries (axial, radial). Smooth barrel, 40 mm. Plastic, ABS. Large monitoring range of 60 to 3000 1/min. Fixed start-up time delay 5 s. Switchpoint adjustable via potentiometer. Factor 1 for all metals. Resistant to magnetic fields. DC 3-wire, 1065 VDC. NO contact, PNP output. Terminal chamber
- Design:
- Smooth barrel
- Construction size:
- Ø 40 mm
- Rated switching distance:
- 30 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10 65 VDC
- Output function:
- NO contact, PNP
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, ABS, Yellow
- Ambient temperature:
- -30 +85 °C
- Protection class:
- IP67
- Special features:
- Rotation speed monitoring
