Name: Turck DR15S-M30E-2UPN8X2-H1141 ID# 100030149
Brand: Turck
SKU: DR15S-M30E-2UPN8X2-H1141
Price: 845.5 USD
Availability: InStock

Turck DR15S-M30E-2UPN8X2-H1141 ID# 100030149

(No reviews yet) Write a Review

SKU:

DR15S-M30E-2UPN8X2-H1141

MPN:

100030149

Condition:

New

Availability:

Factory Stock: 1

Function:

Radar scanner

Design:

Threaded barrel

Construction size:

M30 x 1.5

Range:

350?à15000 mm

Frequency range:

122 - 123 GHz

Beam angle:

15??

Operating voltage:

18?à33 VDC

Switching element function:

NO/NC programmable

Output function:

PNP/NPN

Communication protocol:

IO-Link

Electrical connection:

Connector, M12 ?ù 1

Housing material:

Stainless steel, 1.4401 (AISI 316) PTFE

Ambient temperature:

-25?à+65 ??C

Protection class:

IP67/IP69K

Manual:

Quick Start Guide:

Flyer:

Datasheet:

Description

Description

Radar Sensor. Distance/Object Detection. Ident. no.: 100030149. Blind zone: 35 cm. Range: 15 m. Resolution: 1 mm. Cone angle of the radar beam: Standard ±7.5°. Approved acc. to ETSI 305550-2. Approved acc. to FCC/CFR 47 Part 15.. M12 Ã 1 male connector, 4-pin. Operating voltage 1833 VDC. Operating voltage 1033 VDC (in SIO mode). Switching output switchable between PNP/NPN. IO-Link. M30 cylindrical design, stainless steel

View AllClose

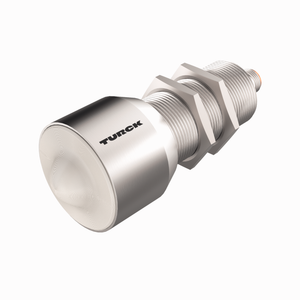

Turck DR15S-M30E-IOL8X2-H1141 ID# 100030148
