Turck Efsbq-A4.400.2-0.5 Receptacles 100007274
Turck
$11.90
Manufacturer's Part Number: 100007274

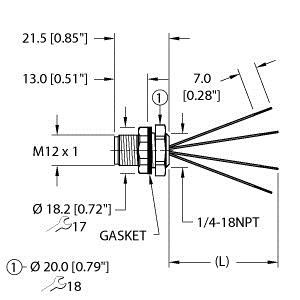

Actuator and Sensor Receptacle. Front Mount. Ident. no.: 100007274. M12, Male, Receptacle, Front mount, 4-pin. Mounting thread: 1/4 -18 NPT
- Application:
- Signal
- Connector A:
- Male, M12 ?ù 1, A-code
- Number of contacts:
- 4
- Mounting orientation:
- Front mount
- Mounting thread:
- 1/4-18 NPT
- Current:
- 4 A
- Length (L):
- 0.50, 0.5 m
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
