Manufacturer's Part Number: 200009262

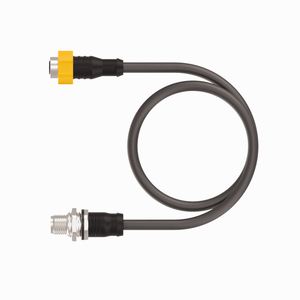

Actuator and Sensor Cable. Extension Cable. Rear Mount. Ident. no.: 200009262. M12, Female, Straight, 5-pin, Torque sleeve. M12, Male, Receptacle, 5-pin. Instrumentation Tray Cable. Black PVC jacket, shielded, 4X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M12 × 1, Straight, A-code
- Connector body:
- Plastic, TPU, Black
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Connector B:
- Male, M12 × 1, A-code
- Mounting type:
- Rear mount
- Mounting Thread B:
- PG9
- Current:
- 4 A
- Cable diameter:
- Ø 5.33 mm
- Length (L):
- 5.0 m
- Cable jacket:
- PVC, Black
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Torque sleeve
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
