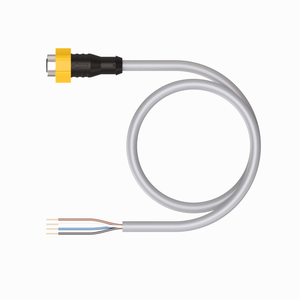

Turck EKWV-A4.400-GU24.SP-3.3 Actuator and Sensor Cordset, Connection Cable
Turck
$69.80
Manufacturer's Part Number: 200009472
Actuator and Sensor Cable. Connection Cable. Ident. no.: 200009472. M12, Female, Right angle, 4-pin. General Purpose Cable. TPU jacket, Gray, 4X22 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M12 ?ù 1, Right angle, A-code
- Number of contacts:
- 4
- Connector body:
- Plastic, TPU, Black
- Coupling nut:
- Stainless Steel, 316L (1.4404), Passivated
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.13 mm
- Length (L):
- 3.30 m
- Cable jacket:
- TPU, Gray
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
