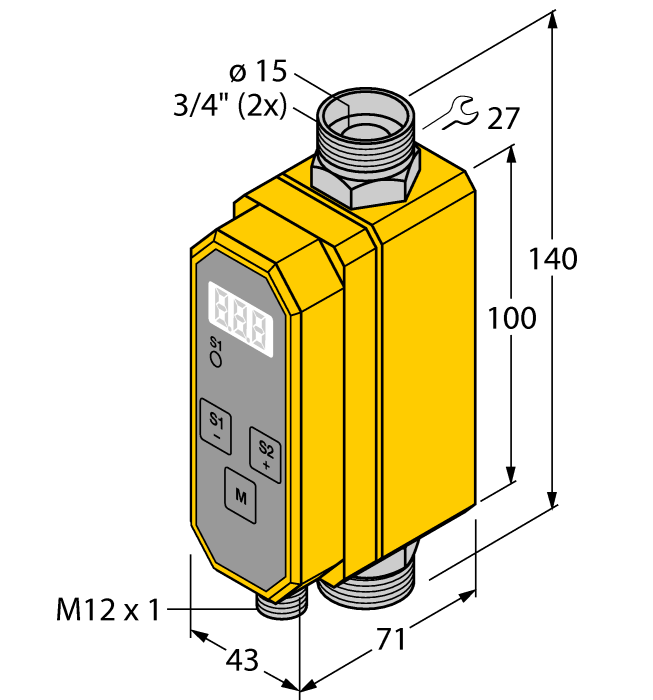

Turck Fci-D15A4P-2Arx-H1160/D209 Flow 6870684
Turck
$1,008.30
Manufacturer's Part Number: 6870684
Flow Monitoring. Inline Sensor with Integrated Processor. Relay Output 24 VDC NO. Ident. no.: 6870684. Compact inline flow sensor. Calorimetric principle. Monitoring of flow rate. Monitoring of the medium temperature. For water-glycol mixtures and HT110/135 Galden fluid. Parametrized via button. Protected by software code. Operating range 3.8
38 l/min. 2 relay switching outputs. Switching outputs 24 VDC NO. Switchpoints freely adjustable
- Function:
- Flow rate measurement
- Design:
- Inline
- Process connection:
- 3/4 Swagelok
- Medium:
- liquids
- Detection type:
- Calorimetric
- Operating voltage:
- 21.6?à26.4 VDC
- Output function:
- NO contact, Relay output
- Electrical connection:
- Connector, M12 ?ù 1
- Sensor material:
- Stainless steel
- Housing material:
- Plastic, POM
- Medium temperature:
- -10?à+95 ??C
- Ambient temperature:
- -20?à+60 ??C
- Protection class:
- IP65
- Flyer:
- View
- Datasheet:
- View
