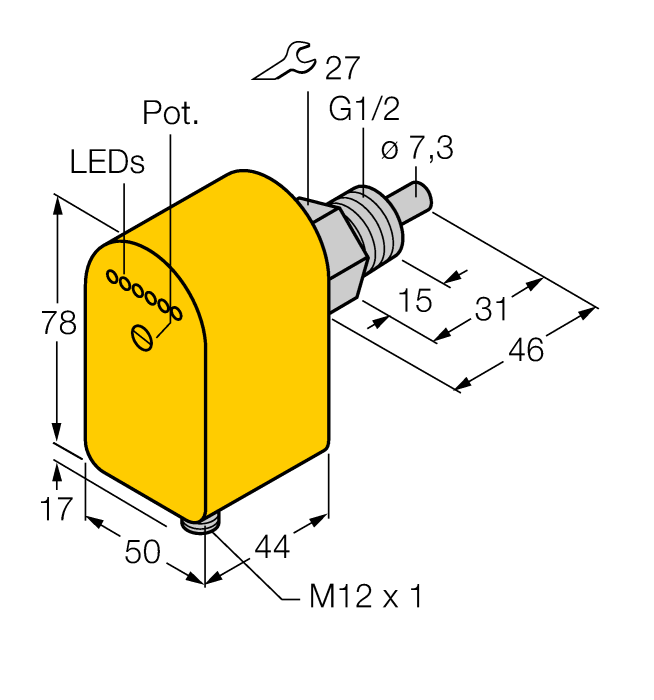

Turck FCS-G1/2A4P-AP8X-H1141 ID# 6870092
Turck
$613.30
Manufacturer's Part Number: 6870092
Flow Monitoring. Immersion Sensor with Integrated Processor. Ident. no.: 6870092. Sensor for liquid media. Calorimetric principle. Adjustment via potentiometer. Status indicated via LED chain. DC 3-wire, 19.2
28.8 VDC. NO contact, PNP output. Connector device, M12 Ã 1
- Function:
- Flow monitoring
- Design:
- Immersion
- Process connection:
- G 1/2''
- Medium:
- liquids
- Detection type:
- Calorimetric
- Operating voltage:
- 19.2?à28.8 VDC
- Output function:
- NO contact, PNP
- Electrical connection:
- Connector, M12 ?ù 1
- Sensor material:
- Stainless steel
- Housing material:
- Plastic, PBT
- Medium temperature:
- -20?à+80 ??C
- Ambient temperature:
- -20?à+70 ??C
- Protection class:
- IP67
- Approvals:
- UL
- Quick Start Guide:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
