Turck Fcs-Ha2P-Lix-H1141/Al115 Flow 6870720
Turck
$904.30
Manufacturer's Part Number: 6870720

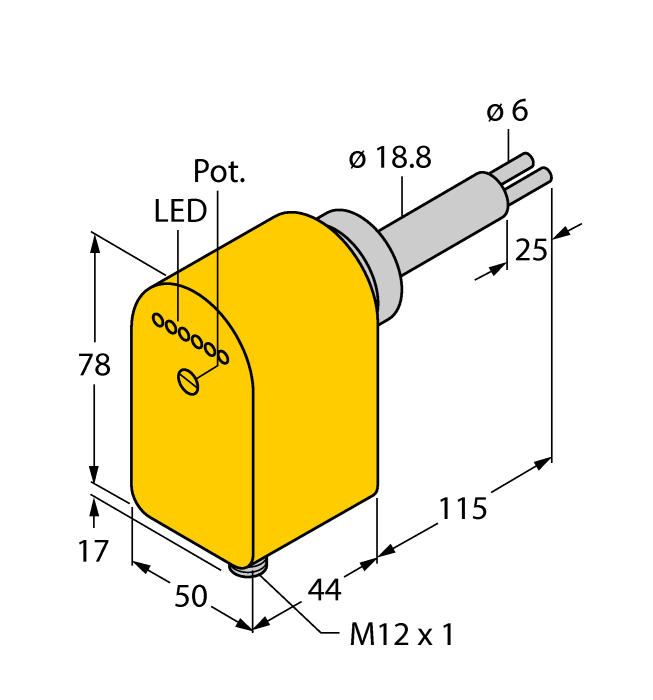

Flow Monitoring. Immersion Sensor with Integrated Processor. Ident. no.: 6870720. Sensor for gaseous media. Calorimetric principle. Adjustments via potentiometer. Sensor length 115 mm. DC 3-wire, 19.2
28.8 VDC. 4
20 mA analog output. Connector device, M12 Ã 1
- Function:
- Flow monitoring
- Design:
- Immersion
- Process connection:
- G 1 female thread DIN 3852
- Medium:
- gases
- Detection type:
- Calorimetric
- Operating voltage:
- 19.2 28.8 VDC
- Output function:
- Analog output
- Current output:
- 4 20 mA
- Electrical connection:
- Connector, M12 × 1
- Sensor material:
- Stainless steel
- Housing material:
- Plastic, PBT
- Medium temperature:
- -20 +80 °C
- Protection class:
- IP67
- Approvals:
- UL
