Turck Fcs-K20-Ap8X Flow 6870702
Turck
$304.90
Manufacturer's Part Number: 6870702

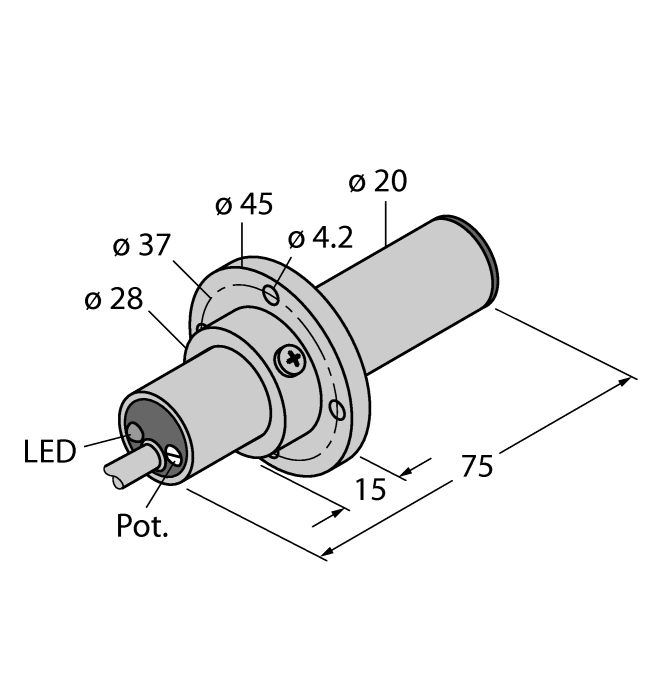

Flow Monitoring. Immersion Sensor with Integrated Processor. Ident. no.: 6870702. Flow sensor for gaseous media. Calorimetric principle. Adjustment via potentiometer. Mounting flange, plastic, included. Status display via 2-color LED. Plastic sensor housing. 3 wire DC, 19.2
28.8 VDC. NO contact, PNP output. Cable device
- Function:
- Flow monitoring
- Design:
- Immersion
- Process connection:
- PVC flange (included in delivery)
- Medium:
- gases
- Detection type:
- Calorimetric
- Operating voltage:
- 19.2?à28.8 VDC
- Output function:
- NO contact, PNP
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Sensor material:
- Plastic
- Housing material:
- Plastic, PBT-GF30-V0
- Medium temperature:
- -20?à+70 ??C
- Ambient temperature:
- 0?à+60 ??C
- Protection class:
- IP67
- Approvals:
- UL
- Quick Start Guide:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
