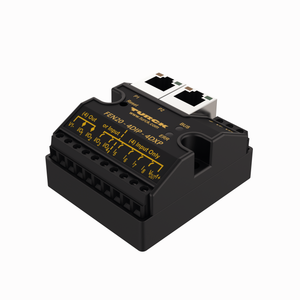

Turck Fen20-4Dip-4Dxp-Din Block-Io 6931092
Turck
$391.30
Manufacturer's Part Number: 6931092
Compact IP20 Multiprotocol Ethernet I/O Station. 4 Digital PNP Inputs and 4 Configurable Digital PNP Channels. Ident. no.: 6931092. FLC/ARGEE programmable . EtherNet/IP Slave . Modbus TCP Slave. PROFINET Slave. Integrated Ethernet Switch. 10 Mbps / 100 Mbps supported. 2 x RJ45 Sockets for Fieldbus Connection. Can be mounted on DIN rail. 4 digital PNP inputs. 4 configurable PNP channels, DI or DO. 24 VDC. 1 A outputs. Protection class IP20
- Fieldbus Protocol:
- Modbus TCP, PROFINET, EtherNet/IP
- Signal type:
- Digital input, Digital input/output, Digital output
- Connection technology signal:
- Screw terminal
- Device type:
- I/O Module, Compact station
- Ambient temperature:
- -40?à+70 ??C
- Protection class:
- IP20
- Approvals:
- UL
- Manual:
- View
- Flyer:
- View
- Datasheet:
- View
