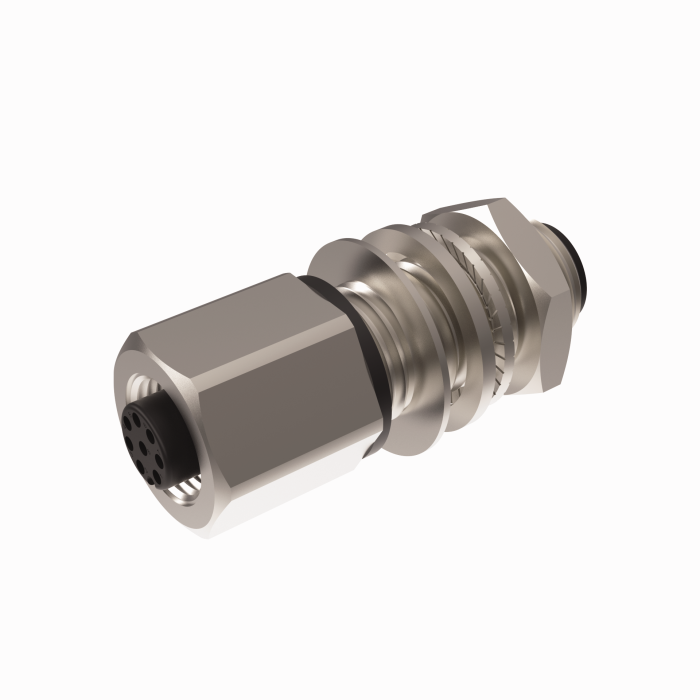

Turck Fk Fs 8/M12 Receptacles U1135-3
Turck
$36.20
Manufacturer's Part Number: U1135-3
Actuator and Sensor Receptacle. Panel Feed-through. Rear Mount. Ident. no.: U1135-3. Voltage: 150V. Current: 4A. Temperature: -40
+80°C. IEC IP68; NEMA 1, 3, 4, 6P. Approvals: UL, CSA. M12, Female, Receptacle, 8-pin. Mounting thread: M12 Ã 1. M12, Male, Receptacle, 8-pin
- Application:
- Signal
- Design:
- Panel feedthrough
- Connector A:
- Female, M12 ?ù 1, A-code
- Mounting orientation:
- Front mount
- Mounting thread:
- M12 ?ù 1
- Connector B:
- Male, M12 ?ù 1
- Voltage:
- 36 V
- Current:
- 1.5 A
- Protection class (When coupled):
- IP68
- Approvals:
- UL Listed, UL 2238, CE, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
