Manufacturer's Part Number: U2-28512

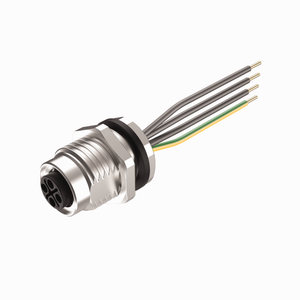

M12 Power Receptacle. Rear Mount. Ident. no.: U2-28512. M12 female connector, S-coded, 3-pin + PE. Mounting thread: M16 x 1.5
- Application:
- Power (>11 Amps)
- Connector A:
- Female, M12 × 1, S-code
- Number of contacts:
- 3+PE
- Mounting orientation:
- Rear mount
- Mounting thread:
- M16 × 1.5
- Voltage:
- 600 V
- Current:
- 12 A
- Length (L):
- 0.5 m
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68
- Approvals:
- cULus recognized
