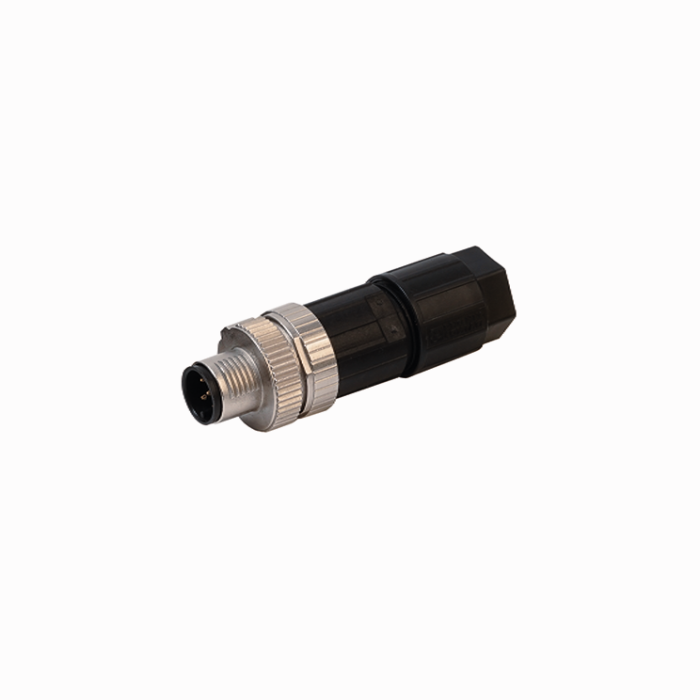

Turck Fw-Erspm0426-Sa-P-0408 100002048
Turck
$29.10
Manufacturer's Part Number: 100002048
Field-Wireable Connector. Male Connector M12 Ã 1, Straight. Ident. no.: 100002048. Push-in connection. A-coding. 4-pin. Flammability class acc. to UL 94 V0. Cable feedthrough: 4.0
8.0 mm. Terminal capacity: 0.14
0.75 mm² (without cable end sleeve). 0.08
0.5 mm² (with cable end sleeve). Approval: cULus. RoHS compliant. Protection class: IP65, IP67
- Application:
- Signal
- Connector A:
- Male, M12 ?ù 1, Straight, A-code
- Number of contacts:
- 4
- Connection mode:
- Push-in connection
- Housing material:
- Plastic, PA 6.6
- Coupling nut/screw material:
- Die-cast Zinc, GD-Zn, Nickel-plated
- Acceptable cable diameter:
- 4?à8 mm
- Core cross-section/Clamping ability:
- 0.14?à0.75 mm??
- Voltage:
- 250 V
- Current:
- 4 A
- Approvals:
- cULus
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
