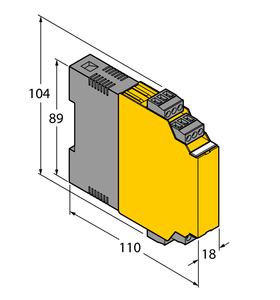

Turck Im12-22Ex-R Isolated Barriers 7541233
Turck
$291.20
Manufacturer's Part Number: 7541233
Isolating switching amplifier. 2-channel. Ident. no.: 7541233. 2 relay outputs (NO). Output mode adjustable (NO/NC mode). Multiplexing of signals possible. Complete galvanic isolation. Input reverse-polarity protected. ATEX, IECEx, cUL, cFM, CSA, TR CU, NEPSI, KOSHA, TIIS, CCOE, INMETRO. Installation in zone 2
- Signal type:
- Digital input
- Device type:
- Isolating switching amplifier
- Ex version:
- yes
- Approvals:
- ATEX, IECEx, UL, cFMus, CSA, TR CU, NEPSI, KOSHA, TIIS, CCOE, INMETRO
- Nominal voltage:
- Wide voltage range
- Number of channels:
- 2
- Digital output:
- Relay output
- Electrical connection:
- 4 ?ù 3-pin removable terminal blocks, reverse polarity protected, screw terminal
- Protection class:
- IP20
- Product series:
- IM
- Quick Start Guide:
- View
- Flyer:
- View
- Datasheet:
- View
