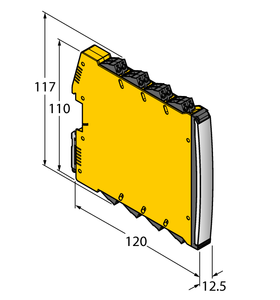

Turck IM12-TI02-1TCURTDR-1I-PR/24VDC/CC
Turck
$432.70
Manufacturer's Part Number: 7580523
Temperature measuring amplifier. 1-channel. Ident. no.: 7580523. Input for thermocouples, low voltages (-150
+150 mV), RTDs (2-, 3- and 4-wire) and 0
5 k resistors (2-, 3- and 4-wire). Current output 0/4
20 mA either as source or sink. Adjustable measuring range. Configuration via rotary coding switches and DIP switches. Wire-break monitoring of input and output circuits. Complete galvanic isolation. Input reverse-polarity protected. Removable spring type terminals. Power bridge (connector incl. in delivery). Use in Zone 2. SIL 2
- Signal type:
- Temperature input
- Device type:
- Temperature measuring amplifier
- Ex version:
- no
- Approvals:
- cULus
- Functional safety (SIL/PL):
- SIL2
- Nominal voltage:
- Power bridge 24 VDC
- Number of channels:
- 1
- Connection variant:
- Power bridge with collective fault signal
- Electrical connection:
- Removable spring-type terminals, 2-pin
- Protection class:
- IP20
- Product series:
- IM(X)12
