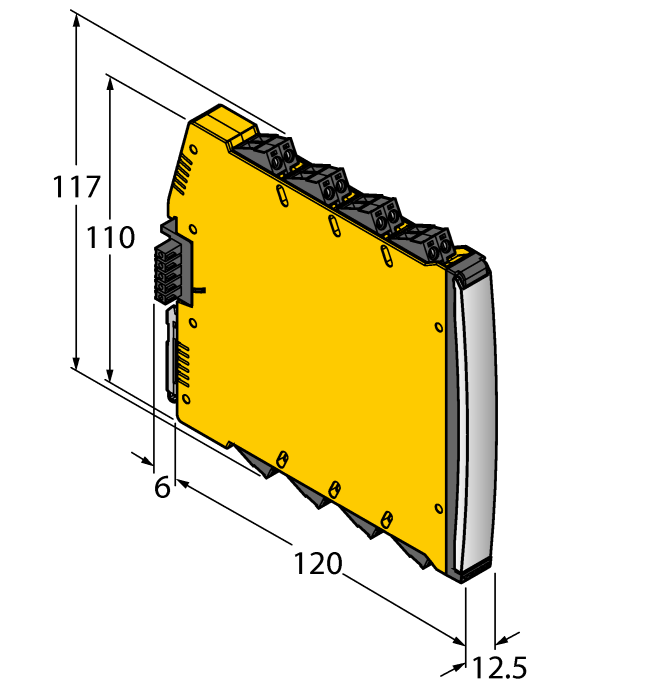

Turck Imx12-Di01-2S-2T-Pr/24Vdc Isolated Barriers 7580021
Manufacturer's Part Number: 7580021
Isolating switching amplifier. 2-channel . Ident. no.: 7580021. 2 transistor outputs ( 10kHz). Switchable: 2-channel or signal doubling. Output mode adjustable (NO/NC mode). Input circuits monitored for wire-break/short-circuit (ON/OFF switchable). Complete galvanic isolation. Input reverse-polarity protected. Removable screw terminals. Power bridge (connector incl. in delivery). ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL. Use in Zone 2. SIL 2
- Signal type:
- Digital input
- Device type:
- Isolating switching amplifier
- Ex version:
- yes
- Approvals:
- ATEX
- Functional safety (SIL/PL):
- SIL2
- Nominal voltage:
- Power bridge 24 VDC
- Number of channels:
- 2
- Digital output:
- Transistor output
- Connection variant:
- Power bridge with collective fault signal
- Electrical connection:
- Removable screw terminals, 2-pin
- Protection class:
- IP20
- Product series:
- IM(X)12
