Turck Jbbs-49Sc-T614/3G Fieldbus & Profibus 6611494

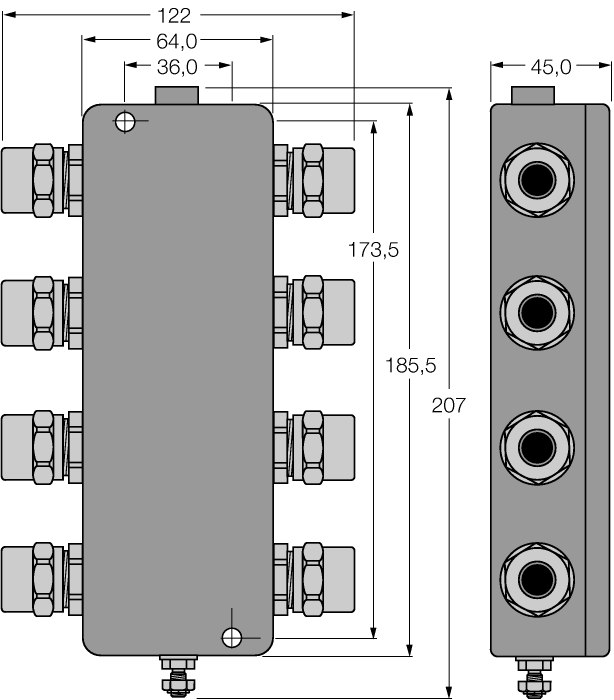

IP67 Junction Box, 6-Channel. FOUNDATION Fieldbus. Ident. no.: 6611494. Junction box for wall mounting with nickel-plated brass cable glands M20 x 1.5. Short-circuit protection per drop line/spur . Integrated terminating resistor (activatable). Cable shielding: Capacitive or direct connection to housing potential selectable via switch. Isolated support terminal for optional protective conductor incorporated in cable. Powder-coated die-cast aluminium housing. Pressure compensation element protects against condensation. Connection of the housing potential via M5 x 1 bolt. Entity and FISCO compliant according to IEC 60079-11
