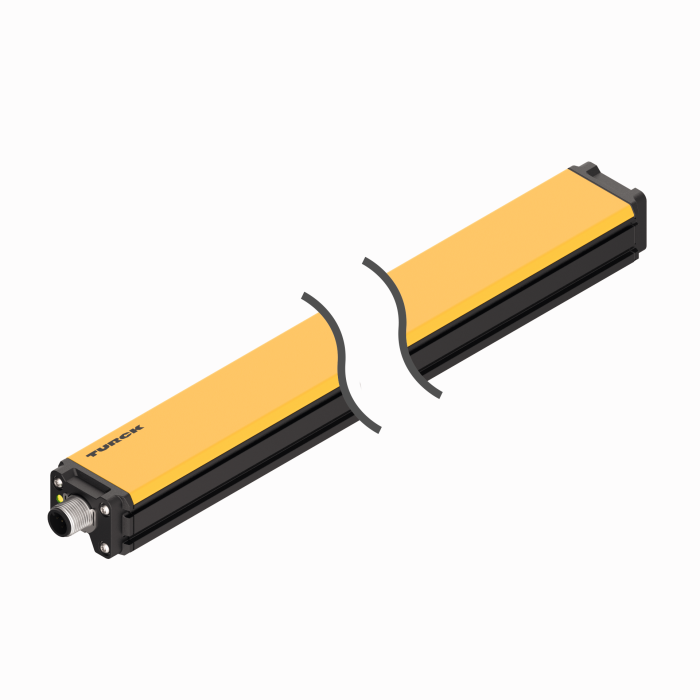

Turck Li1000P2-Q25Lm1-Liu5X3-H1151 Linear Position 1590109
Turck
$933.10
Manufacturer's Part Number: 1590109
Inductive Linear Position Sensor. Ident. no.: 1590109. Rectangular, aluminium / plastic. Versatile mounting possibilities. Positioning element P2-Li-Q25L, mounting aid M1-Q25L included in delivery. LED indicates measuring range. Immune to electromagnetic interference. Extremely short blind zones. Resolution, 12-bit. 4 wire, 15
30 VDC. Analog output. Programmable measuring range. 0
10 V and 4
20 mA. M12 Ã 1 male, 5-pin
- Design:
- Profile
- Measuring principle:
- Inductive
- Measuring range:
- 1000 mm [39.37 in]
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 4?à20 mA
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Aluminum/plastic, PA6-GF30, Anodized
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
