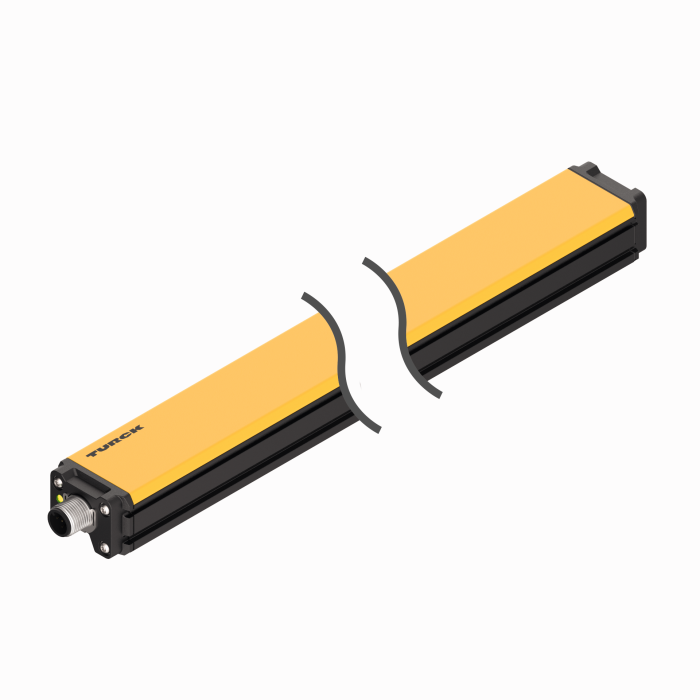

Turck Li300P0-Q25Lm0-Eliu5X3-H1151 Linear Position 100001934
Turck
$527.30
Manufacturer's Part Number: 100001934
Inductive Linear Position Sensor. Ident. no.: 100001934. Rectangular, aluminium / plastic. Versatile mounting possibilities. Measuring range displayed via LED. Immune to electromagnetic interference. Extremely short blind zones. Resolution, 16-bit. 4-wire, 15
30 VDC. Analog output. Programmable measuring range. 0
10 V and 4
20 mA, improved machine safety possible through redundancy. M12 Ã 1 connector, 5-pin
- Design:
- Profile
- Measuring principle:
- Inductive
- Measuring range:
- 300 mm [11.81 in]
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 4?à20 mA
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Aluminum/plastic, PA6-GF30, Anodized
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP66/IP67
- Manual:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
