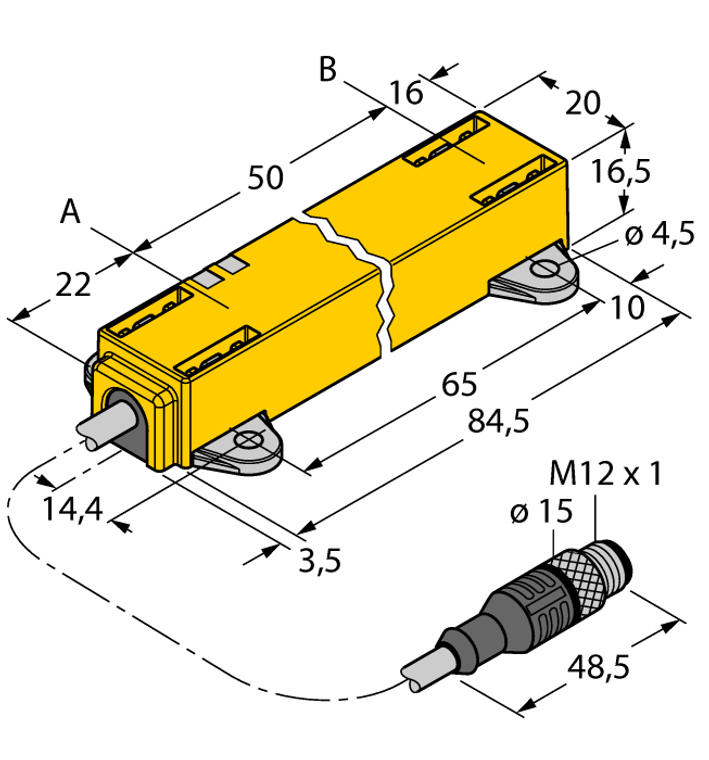

Turck Li50P1-Q17Lm1-Liu5X2-0.3-Rs5 Linear Position 1590725

(No reviews yet) Write a Review
SKU:
LI50P1-Q17LM1-LIU5X2-0.3-RS5
MPN:
1590725
Condition:
New
Availability:
Factory Stock: 3
Design:
Profile
Measuring principle:
Inductive
Measuring range:
50 mm [1.97 in]
Operating voltage:
15?à30 VDC
Output function:
Analog output
Voltage output:
0?à10 V
Current output:
4?à20 mA
Electrical connection:
Cable with connector, M12 ?ù 1
Cable length (L):
0.30 m
Housing material:
Plastic, PC-GF10
Ambient temperature:
-25?à+70 ??C
Protection class:
IP67
Catalog:
View
Datasheet:
View
  • Turck Li50P1-Q17Lm1-Liu5X2-0.3-Rs5 Linear Position 1590725
  • Turck Li50P1-Q17Lm1-Liu5X2-0.3-Rs5 Inductive Linear Position Sensor
$429.00

Description

Inductive Linear Position Sensor. Ident. no.: 1590725. Rectangular, plastic. Versatile mounting options. Positioning element P1-Li-QR14/Q17L, mounting elements 2 × M1.1-Q17L as well as 2 × M1.2-Q17L included in delivery. LED indicates measuring range. Immune to electromagnetic interference. Extremely short blind zones. Resolution, 12-bit
